Get your model into prod

Deploying your modelling code into production with Microsoft Azure

Dean Marchiori

Wave Data Labs

Go from this…

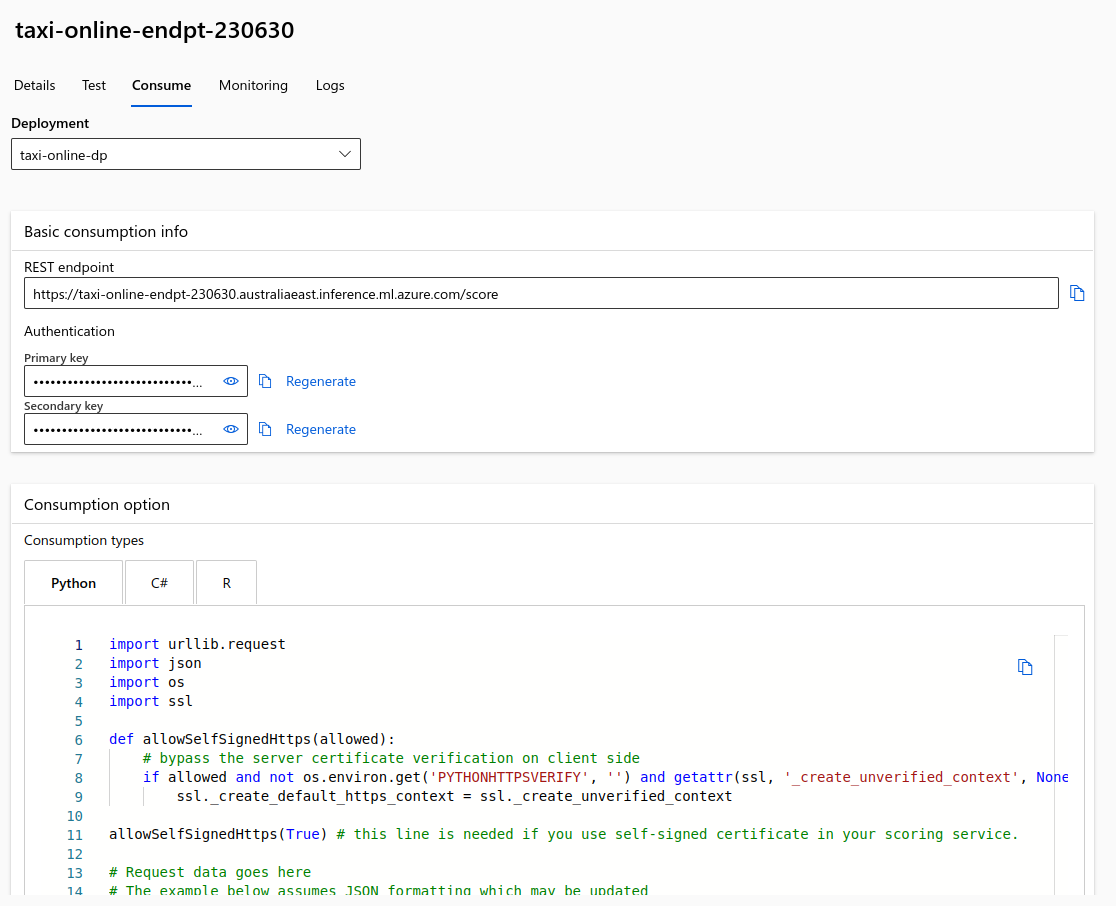

To this…

Part 1: Overview of Machine Learning Operations (MLOps)

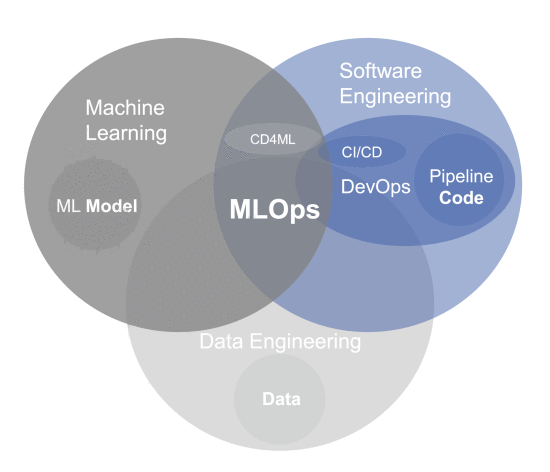

What is MLOps?

Source: Kreuzberger (2023)

What is MLOps?

  • CI/CD Automation
  • Workflow Orchestration
  • Reproducibility
  • Versioning of data, model, code
  • ML metadata tracking
  • Monitoring & Feedback

Source: Kreuzberger (2023)

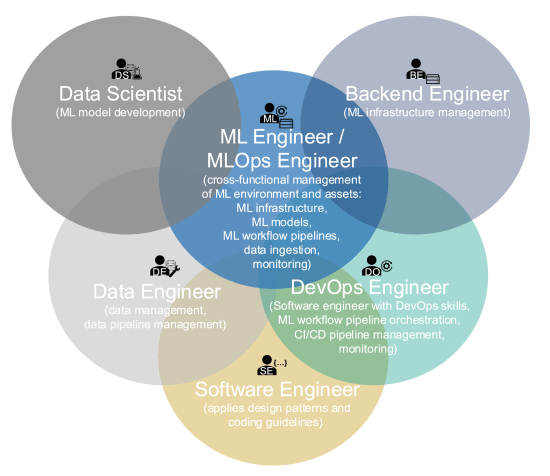

Who is MLOps?

Source: Kreuzberger (2023)

Who is MLOps?

Experimentation vs Productionisation (Inner Loop vs Outer Loop)

  • Business Understanding
  • Data Understanding
  • Data Preparation
  • Modelling
  • Evaluation
  • Deployment

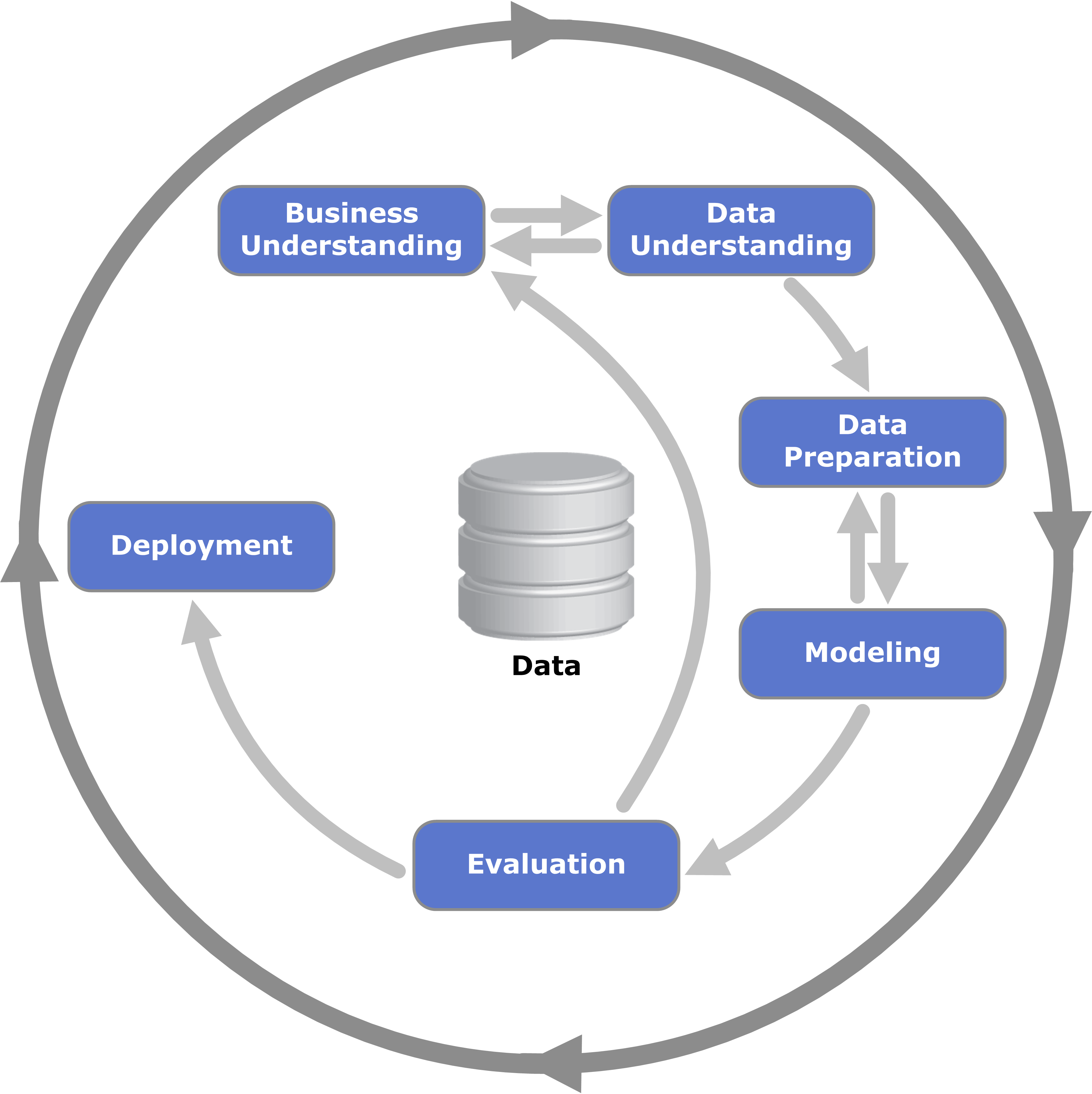

Source: CRISP-DM

Kenneth Jensen, CC BY-SA 3.0, via Wikimedia Commons
  • Outer Loop
  • Infrastructure Deployment
    • Inner Loop

      • Business Understanding
      • Data Understanding
      • Data Preparation
      • Modelling
      • Evaluation
  • Model Registration and Deployment
  • Monitoring

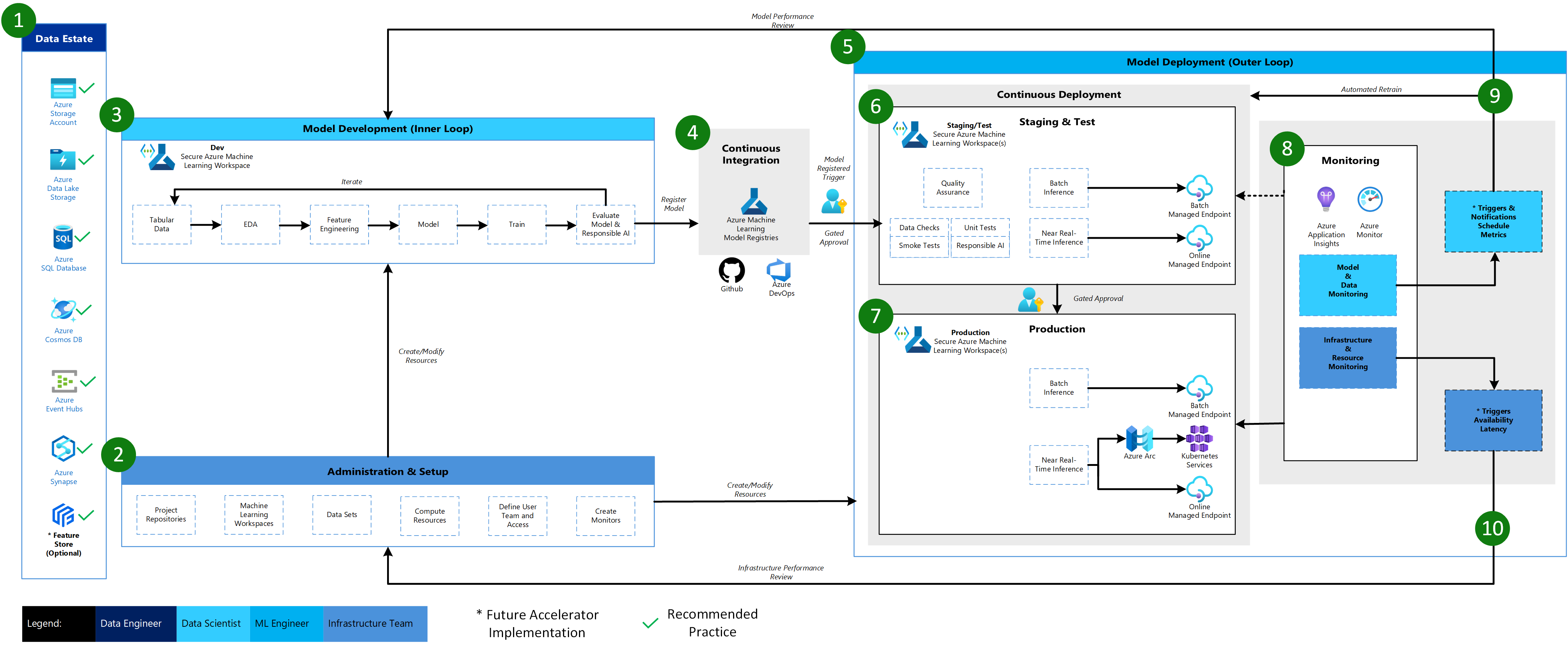

Reference Architecture

Deployment patterns

graph TD;
    MLArchitecture-->Classic;
    MLArchitecture-->ComputerVision;
    MLArchitecture-->NLP;
    Infra-Deployment-->Bicep;
    Infra-Deployment-->Terraform;
    Infra-Deployment-->CLI;



graph TD;
    Orchestration-->AzureDevOps;
    Orchestration-->Github;
    MlOpsCode-->Python-SDK;
    MlOpsCode-->Azure-CLI-v2;

Azure ML Studio Tour

Part 2: Converting development code into production quality code

Case Study: Predict NYC Taxi Fares

Not really important, just a quick example.

RandomForestRegressor(n_estimators = 500,
                      bootstrap = 1,
                      max_depth = 10,
                      max_features = 1.0,
                      min_samples_leaf = 4,
                      min_samples_split = 5,
                      random_state=0)
TARGET_COL = "cost"

NUMERIC_COLS = [
    "distance",
    "dropoff_latitude",
    "dropoff_longitude",
    "passengers",
    "pickup_latitude",
    "pickup_longitude",
    "pickup_weekday",
    "pickup_month",
    "pickup_monthday",
    "pickup_hour",
    "pickup_minute",
    "pickup_second",
    "dropoff_weekday",
    "dropoff_month",
    "dropoff_monthday",
    "dropoff_hour",
    "dropoff_minute",
    "dropoff_second",
]

CAT_NOM_COLS = [
    "store_forward",
    "vendor",
]

Review experimentation code

graph TB
    subgraph id1 [Monolithic Notebook]
    a1[Load Dependencies]-->a2[Data Prep]-->a3[Test/Train Split]-->a4[Train Model]-->a5[Evaluate Model]-->a6[Diagnostics]
    end
    a7[(Data)]-->a2
    style id1 fill:lightblue;

Split into scripts

graph LR
  a1[[Data Prep]]-->a2[[Model Training]]-->a3[[Evaluation]]-->a4[[Unit Tests]]
  • Read in required inputs
  • Export object for next step
  • Parameterise scripts with argparse
  • Add logging using mlflow
  • Bundling code as functions

MLOps additions

graph TB
  b1[[Infrastructure Deploy]]
  a1[[Data Prep]]-->a2[[Model Training]]-->a3[[Evaluation]]-->a4[[Unit Tests]]
  e1[[Deploy REST API Endpoint]]
  style b1 fill:red
  style e1 fill:red

Convert to ‘pipelines’

flowchart LR
  subgraph p1[Infra Deploy Pipeline]
  b1[[Infrastructure Deploy]]
  end
  subgraph p2[Model Training Pipeline]
  a1[[Data Prep]]-->a2[[Model Training]]-->a3[[Evaluation]]-->a4[[Unit Tests]]
  end
  subgraph p3[Endpoint Deployment Pipeline]
  e1[[Deploy REST API Endpoint]]
  end
  p1 --> p2
  p2-->p3
  style p1 fill:lightblue;
  style p2 fill:lightblue;
  style p3 fill:lightblue;

More detailed pipeline

flowchart LR
  s1[[config.yml]]-->b2
  subgraph p1[Infra Deploy Pipeline]
    direction TB
    b1[[install az cli]]-->b2[[create resource group]]-->b3[[create workspace]]-->b4[[create compute]]
  end
  a7[[environment.yaml]]-->a6
  a9[(Data)]-->a8
  subgraph p2[Model Training Pipeline]
    direction TB
    a6[[register environment]]-->a8[[register data]]-->a1[[Data Prep]]-->a2[[Model Training]]-->a3[[Evaluation]]-->a4[[Register Model]]
  end
  subgraph p3[Endpoint Deployment Pipeline]
    direction TB
    e1[[Create REST Online endpoint]]-->e2[[Deploy Model to enpoint]]-->e3[[test endpoint]]
  end
  p1 --> p2
  p2-->p3
  style p1 fill:lightblue;
  style p2 fill:lightblue;
  style p3 fill:lightblue;

Result? A sea of YAML files

Part 3: Deploying MLOps pipelines

Setup

  1. Create service principal in Azure Portal
  2. Create new project in DevOps
  3. Configure authentication with Azure + Security
  4. Clone repo from MLOps template
  5. Set up pipelines from the .yml files

Detailed Instructions at:

MLOps Quickstart

More bespoke instructions at:
Azure MLOps (v2) Solution Accelerator

Infrastructure as Code deployment

  1. Create the resource group
  2. Create the Azure ML workspace
  3. Connect to the Azure ML workspace
  4. Create the compute target

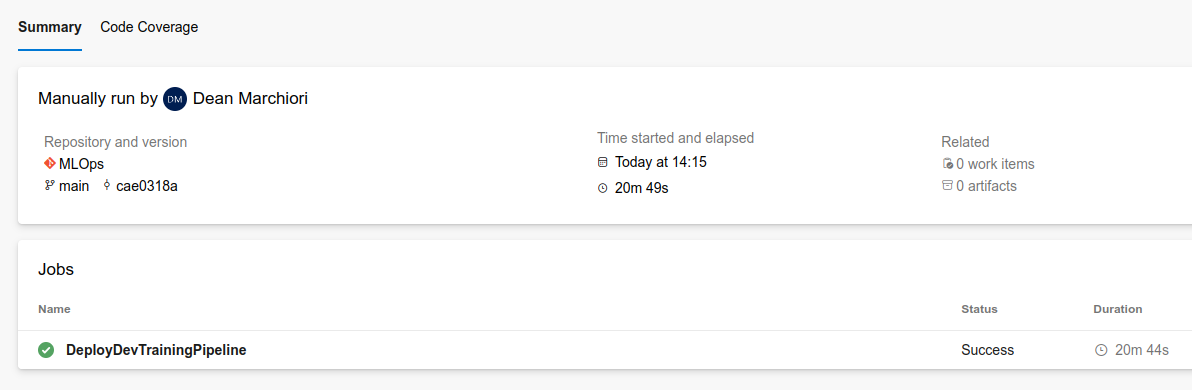

Model training

  1. Connect to the Azure ML workspace
  2. Register the environment
  3. Create the compute target
  4. Register data
  5. Run the ML Pipeline

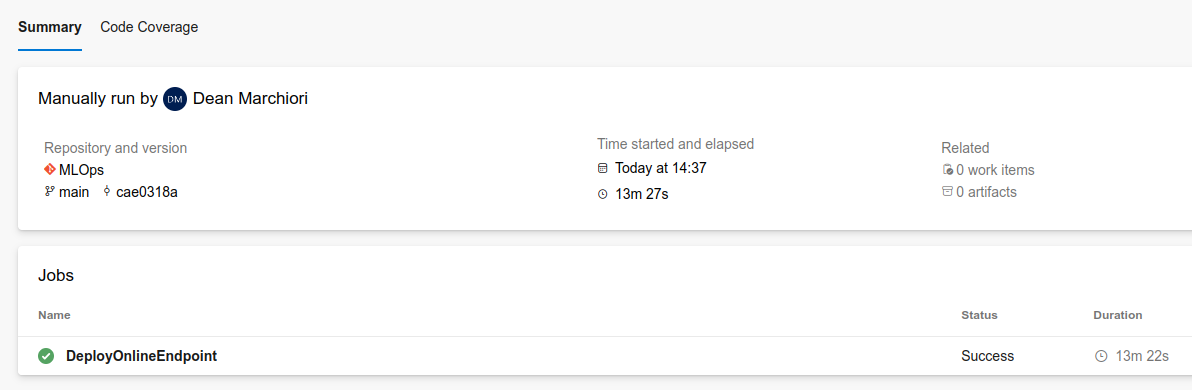

Endpoint deployment and test

  1. Connect to the Azure ML workspace
  2. Create the online endpoint
  3. Create the online deployment
  4. Allocate traffic to the online deployment
  5. Test the online deployment

Real World Considerations

  • Usage / monitoring
  • Security
  • Prod vs Dev
  • Unit Tests
  • Model performance promotion
  • Monitoring
  • CI/CD

Learning more


For all resources visit: https://deanmarchiori.github.io/deploywithazure
